Job I/O Information

Lists I/O related information about completed work.

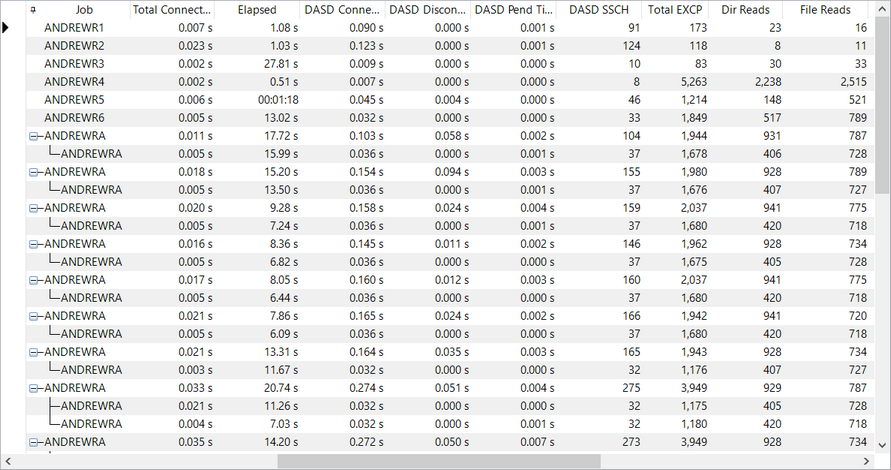

JobIoInformation

Columns

ColumnDescription
JobJob name (SMF30JBN)
Job NumberThe job identifier JOBnnnnn, STCnnnnn, TSUnnnnn etc. (SMF30JNM)
DescendantsThe number of descendants of this job entry. Descendants are entries for unix work that created separate SMF type 30 records (and usually ran in a separate address space) but was created by this job.
TypeThe type of work JES2, STC, TSO, OMVS etc.(SMF30WID)
SysplexThe Sysplex of the system that wrote the record (SMF30SYP)
SystemThe system that wrote the record
ClassThe job class (SMF30CL8)
StartedThe time the initiator selected the job (SMF30STD + SMF30SIT)
EndedThe time the job ended (SMF30DTE + SMF30TME from the subtype 5 record.)
ElapsedJob elapsed time (end time - initiator select time)
Total Connect TimeTotal device connect time (SMF30TCN)
DASD Connect TimeDASD connect time (SMF30AIC)
DASD Disconnect TimeDASD disconnect time (SMF30AID)
DASD Pend TimeDASD pending plus control unit queue time (SMF30AIW)
DASD SSCHDASD start subchannel count (SMF30AIS)
Total EXCPTotal blocks transferred (SMF30TEP or SMF30TEX)
Dir ReadsUnix directory reads (SMF30ODR)
File ReadsUnix file read block count (SMF30OFR)
File WritesUnix file write block count (SMF30OFW)
Pipe/Sock ReadsUnix pipe and AF_UNIX socket reads block count (SMF30OPR)
Pipe/Sock WritesUnix pipe and AF_UNIX socket write block count (SMF30OPW)
Log. Path LookupsNumber of logical filesystem pathname lookups (SMF30OLL)
Phys. Path LookupsNumber of physical filesystem pathname lookups (SMF30OLP)
Log. Path GenerationNumber of pathname generation calls to the logical filesystem (SMF30OGL)
Phys. Path GenerationNumber of pathname generation calls to the physical filesystem (SMF30OGP)

Report Parameters

ParameterDescription
SysplexThe sysplex name.
SystemThe SMF ID of the system that wrote the record.
TypeThe type of work (from field SMF30WID). JES2, STC, TSO, OMVS etc.
JobnameFilter by job name.
JobclassFilter by job class.
UseridFilter by userid.
Service ClassFilter by service class
Report ClassFilter by report class
Related ProcessesShow jobs that do not match the current selection criteria, but are related (i.e. unix parent or child processes) of jobs that do.

SMF records used for this report

TypeSubtype
302, 5
